FLAT ROOF SOLAR MOUNT SYSTEMS

BALLASTED OR FASTENED – FOR ANY MEASUREMENTS

Schletter flat roof solar mounts are specially designed for quick and simple installation to matter the construction or structural condition. Our highly talented structural engineers carefully calculate the optimum design for your roof’s unique shape, size, and slope. This ensures the loads are spread optimally over the building’s structure while staying within the load limit.

Our team takes all relevant building regulations into account in addition to the local wind rates and snow loads. Throughout the entire installation process, we’re focused on mitigating the amount of work that’s done to your roof. We accomplish this through extensive planning and intelligent design. This ensures your roof remains completely leak-proof and intact.

BALLAST OPTIMIZED SOLUTIONS

FIXGRID18

INFORMATION

Description:

  • Aerodynamic flat roof tracking system
  • Can be raised to 6° and 13° angle or 10° angle on request
  • Ballast optimized
  • Available with quarter-point clamping for the modules on request
  • Includes building protection with aluminum lamination

.

Advantages:

  • Quick assembly
  • Easy to store
  • Great value
  • Optimized tools and materials
  • No additional hardware needed for up to a 5° roof pitch
DOWNLOADS
.

Product sheet FixGrid18:

Installation guide FixGrid18:

Component overview:

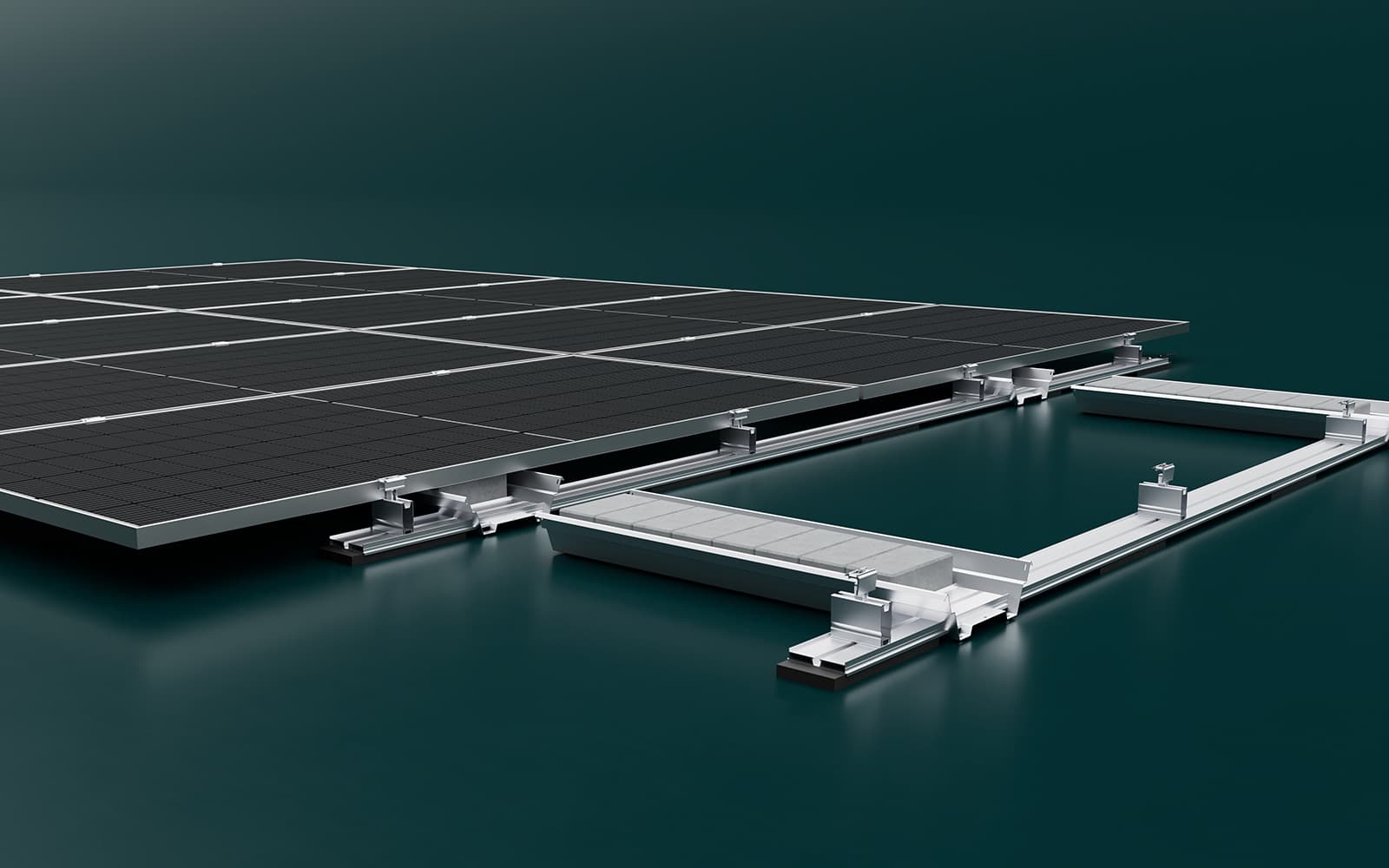

FLATGRID

INFORMATION

Description:

  • Cost-efficient system for slightly inclined or flat roofs
  • Roof-parallel (flush mount)
  • Unit assembly system is compatible with most Schletter components

.

Advantages:

  • Very few superimposed loads required
  • Integrated surface protection mat
  • Optimized for material and cost
  • Schletter Configurator
DOWNLOADS
.

Product sheet FlatGrid:

Checklist parallel to the roof:

Installation guide FlatGrid:

Component overview:

SUPPORT SYSTEMS

INFORMATION

Description:

  • Various system configurations for any elevation angle
  • Ballasted and mechanically linked variants
  • Select support angles in 5° increments

.

Advantages:

  • Optimal yields
  • Can be combined with all Schletter standard products
  • Quick assembly
DOWNLOADS
.

Product sheet CompactDirect:

Product sheet SolRack:

Checklist elevated solar plant:

Component overview:

FASTENING TO THE SUBSTRUCTURE

ISOTOP

INFORMATION

Description:

  • Designed for industrial roofs with wide spans
  • Fastens to the girders
  • Object planning is based on an individual structural analysis software

.

Advantages:

  • Reduced loads on the roof substructure
  • Direct load application for the supporting structure of the building
  • Optimized and minimized roof penetrations
  • Improved connection details
DOWNLOADS
.

Product sheet IsoTop:

Product sheet IsoTop TR:

Checklist IsoTop:

Installation guide IsoTop:
